Screw M5 Full Closed 5mm Cold Forging Heading Machine

DUJIANGYAN BEYOND MACHINERY MANUFACTURE CO.,LTD
Contact Now

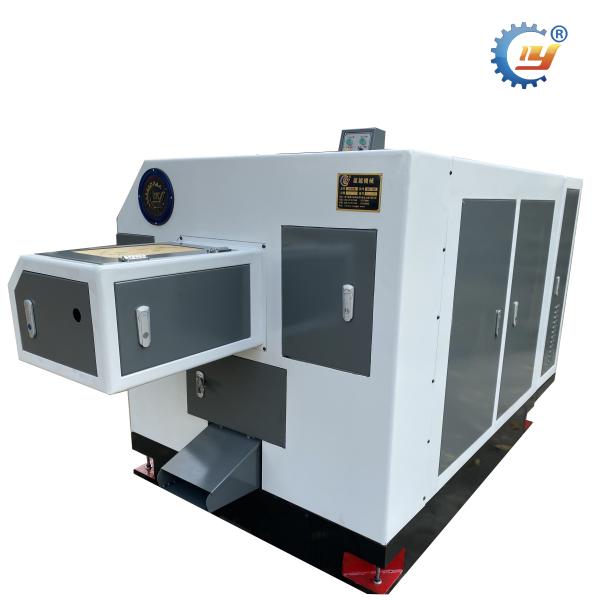

Screw M5 Full Closed 5mm Cold Forging Heading Machine

Brand Name : BEYOND MACHINERY

Model Number : SH-15B

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1

Price : USD 5,000-8,000.00/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 sets 15 days

Delivery Time : 30-45 DAYS

Packaging Details : Thin film

Usage : Cold heading

Name : Screw cold heading machine

Color : Optional

Function : specialized in manufacturing common types screws

Power(w) : 2.2KW

Contact Now

Automatic Screw Making Cold Header Machine For M5 Full Closed

The application of heading machines

  • The heading machine is a cold heading machine which is a professional equipment supporting the automatic thread rolling machine in the whole plant of the fastener industry.
  • Its purpose is to use selected metal wires such as carbon steel, stainless steel, aluminum, copper, etc. with suitable molds, according to the allowable compression ratio of the wire, under the action of the slider driven by the crankshaft connecting rod, automatic and fast After automatically cutting the wire of the required size, it is extruded into the required head shape and rod diameter of the fastener in the mold to facilitate thread rolling or become a qualified rivet fastener. The heading machine automatically processes the wire into semi-finished products. High production efficiency, good product quality, and adjustable diameter and length.

Parameters of Machine

Model Max. Blank Dia. Max. Blank Length Stroke Capacity Machine Size Weight
mm mm mm pcs/min m KG
SH-15B 5 65 102 140-160 2.08*1.06*1.12 1850

Product Detail

Screw M5 Full Closed 5mm Cold Forging Heading Machine

Feature

  • The body is made of high-quality castings, the whole machine has a compact structure and stable performance.
  • The whole machine adopts fully enclosed design, which is convenient for equipment tidying, maintenance and cleaning.
  • The guide rail is made of high-quality alloy and copper alloy, and after special treatment, the wear resistance is better.
  • The key parts are processed by CNC to ensure the accuracy requirements of the equipment.
  • The gear box is equipped with high-precision gears, which makes the transmission stable and reliable, and lower noise.

Packaging & Delivery

Wrapped by stretching plastic films

Delivery time:within 15 days after receiveing your advanced payment.

Port: CHONGQING/NINGBO/ SHANGHAI

Screw M5 Full Closed 5mm Cold Forging Heading Machine

Screw M5 Full Closed 5mm Cold Forging Heading Machine

Certifications

Screw M5 Full Closed 5mm Cold Forging Heading Machine

Screw M5 Full Closed 5mm Cold Forging Heading Machine

Company Information

About US

  • Our company mainly deals with screw machine series products. The company attaches great importance to management innovation, technological innovation, research and development of the latest products and new products at the international frontier.
  • The company takes "honest and trustworthy" as its business philosophy; "good quality, leading technology, and providing customers with satisfactory products and services" as its development purpose.
  • The company is located in Dujiangyan Economic Development Industrial Zone, Chengdu City, Sichuan Province. It specializes in the production of screw heading machines and tooth rubbing machines.
  • It is one of the earliest companies involved in the development of fastener equipment in China. It has its own unique technology and experience in this field.
  • Since its establishment in 1993, the company has used advanced technology and equipment to manufacture leading domestic technology and fashionable screw equipment for customers; it has experienced engineers and technicians, a complete product testing system, and timely after-sales service. trust. The main parts of the machine are imported from Taiwan and Japan, with the highest quality.
